7W2 Coaxial D-Sub Right Angle/Straight Pins High Current Connector Combo DB

  • 1
  • 2
  • 3

Rated Current : 10A / 20A / 30A / 40A

Signal contacts current rating : 3A

Brand Name : BEDE

Model Number : 7W2 right angle pins

Certification : CE

Place of Origin : China

MOQ : 100

Price : negotiation

Payment Terms : T/T,Western Union

Supply Ability : 4000Pcs per day

Delivery Time : base on quantities

Packaging Details : PE bag and carton

Gender : Male and female

Connector Style : D-SUB 7W2

Connector with signal contact material : brass gold plated

Applicable Temperature : -55~+125℃

Contact Material : Copper Alloy gold plated

Connector Type : D Sub

Working Voltage : 300V

Insulator material : PBT+30%GF

Contact Now

7W2 Coaxial D-Sub Right Angle/Straight Pins High Current Connector Combo DB Connector


Description


This page for a right angle combo high power d-sub connector male and female sets, used for applications that require power, and signal running in one connector, widly uesd in Communication, Robotics, Automation, and Transportation fields.
The 7w2 D-Sub connector have 2pcs power contacts and and 5pcs signal contacts, the Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different, the impedance for the coaxial contacts are 50Ω or 75Ω. All of the contact pins are machined processing, phosphor copper material, gold full plated to guarantee its performance and service life.


7W2 Coaxial D-Sub Right Angle/Straight Pins High Current Connector Combo DB


Electrical Characteristics

  1. High Power Contact Ratings: 10, 20, 30 or 40 Amps optional, check the follwing drawing and table for details
  2. Connector Rating with Signal Contact: 3.0 Amps
  3. Operating Voltage: 300V
  4. High Power Contact Resistance: 2.7 Milliohms Max
  5. Withstand Voltage: 1000V AC for 1 Minute
  6. Insulation Resistance: 2000 Megohms Min.
  7. Temperature Rating: -55°C to +125°C

7W2 Coaxial D-Sub Right Angle/Straight Pins High Current Connector Combo DB

7W2 Coaxial D-Sub Right Angle/Straight Pins High Current Connector Combo DB


Part number A/mm B/mm Rated current
DBA7W2-1 1.7 2.0 10 Amp
DBA7W2-2 2.75 3.0 20 Amp
DBA7W2-3 3.3 3.6 30 Amp
DBA7W2-4 3.8 4.1 40 Amp

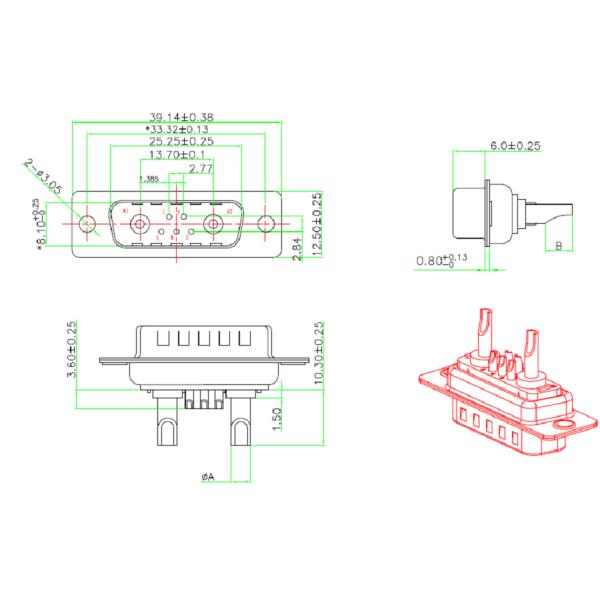

Following drawing if for straight pins 7W2 DB Combo connectors,

7W2 Coaxial D-Sub Right Angle/Straight Pins High Current Connector Combo DB
